High Temperature Resistant Anti-Cracking 100-100 KN/M Glassgrid Bitumen Coating Reinforced Asphalt Pavement

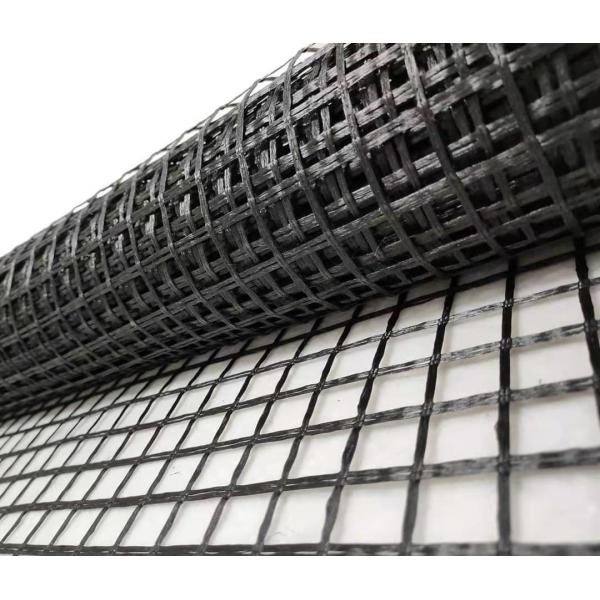

100-100 KN/M Glassgrid Product Overview
100-100 KN/M Bitumen Coated Glassgrid is a professional geosynthetic reinforcement product
specially developed for asphalt pavement structural reinforcement, crack resistance and service
life prolongation. Taking high-strength biaxial fiberglass as the core substrate, combined with
full-coverage modified bitumen coating process, this product features stable performance,
excellent asphalt compatibility and long-term durability, fully meeting the design and construction
requirements of road engineering.
It effectively blocks reflective cracking, thermal cracking and traffic load-induced cracking in asphalt pavement,
providing reliable structural support for various road projects. Meanwhile, it greatly reduces later-period
maintenance costs and optimizes the full-life-cycle economic benefits of pavement projects.
100-100 KN/M Glassgrid Product Features:
- Biaxial Uniform Tensile Strength: ≥100KN/m tensile strength in both warp and weft directions,
efficiently disperses pavement stress, resists deformation under heavy loads, and fundamentally
suppresses crack generation and propagation.
- Premium Bitumen Coating Integration: Full-coverage modified bitumen coating ensures perfect
bonding with hot asphalt mixture, stable interlayer performance, no slipping, no peeling and no aging
during construction and service.
- Low Elongation & High Rigidity: Break elongation ≤3%, maintaining high structural stability,
effectively preventing pavement rutting and uneven settlement, keeping asphalt pavement flat for a long term.
- Wide Temperature Resistance: Stable performance under -40℃ to 200℃, compatible with high-temperature
hot asphalt paving construction, and adaptable to harsh outdoor weather conditions with UV & acid-alkali resistance.
- Long-Lasting Durability: High-quality fiberglass substrate with no creep, service life up to 20+ years, highly matching the design life of asphalt pavement structures.
Reinforcement Fiberglass Geogrid Key Properties:
Typically ranges from 20x20 mm to 40x40 mm, optimized for optimal interlock with common aggregate sizes.
Coated with a polymeric material (e.g., PVC) to protect the glass fibers from abrasion and
damage during installation and to provide UV resistance.
Reinforcement Fiberglass Geogrid Specification:
| Fiberglass geogrid technological standard(GB/T 21825-2008) |
| specification | FG30×30 | FG50×50 | FG
60×60 | FG
80×80 | FG
100×100 | FG
120×120 | FG
150×150 |
| Mesh center distance(mm) | MD | 25.4±3.8 , 12.7±3.8 |
| CMD | 25.4±3.8 , 12.7±3.8 |
| breaking strength(kn/m) | MD | 30 | 50 | 60 | 80 | 100 | 120 | 150 |
| CMD | 30 | 50 | 60 | 80 | 100 | 120 | 150 |
| Breaking Elongation(%) | MD | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| CMD | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Width(m) | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m |
Before Coated Bitumen After Coated Bitumen
Mesh Size 25.4x25.4mm Mesh Size 12.8x 12.8 mm
100-100 KN/M Glassgrid Application Scenarios :
- New construction of highways, municipal roads, national & provincial highways
- Old asphalt pavement overlay & white-to-black reconstruction projects
- Bridge deck pavement, road widening and busy intersection sections
- Airport runways, port freight roads, heavy-load parking lots
- Industrial zone roads, highway ramp and routine maintenance projects
Yixing Shenzou Geosynthetics more geotechnical material solutions,
Welcome to contact Yixing Shenzhou Amelie Dai
Email : amelie@geogrid-cn.com
Mob/Whatsapp : 0086 13815119816
To Get Free Sample!!!
Certifications & Quality Assurance:
- ISO 9001 Quality Management System Certification
- CE Certification, SGS Third-Party Testing Report

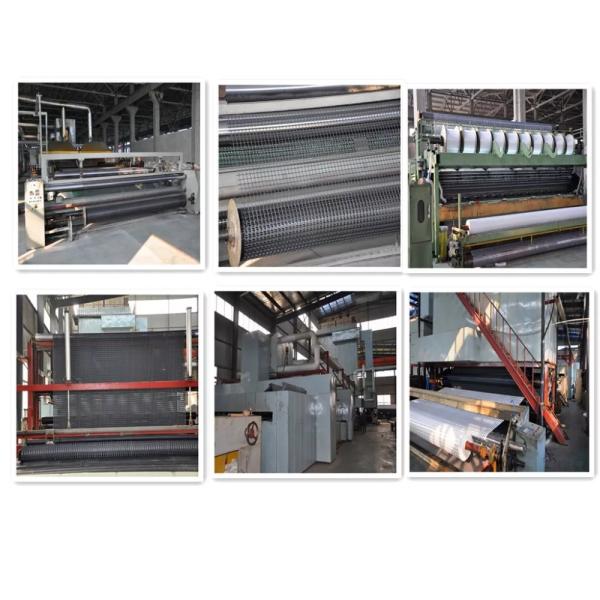

- Full-process quality control & factory direct supply
- Professional technical support and full-chain after-sales service
